Your En Suite Is Broken (And Your Floor Plan Is Why)

Most renovation regrets in private sleeping and bathing spaces trace back to the same root cause: the floor plan was finalized after the fixtures were chosen, not before. Getting your master bedroom and bathroom layout right means making spatial decisions in the correct sequence — before you fall in love with a freestanding tub in a showroom, buy it, hire a contractor, and then have someone ask — usually too late — where the drain goes. The sequence sounds absurd when you say it out loud, but I watched it happen to clients across eleven years of working in residential interiors in Chicago and New York. Repeatedly. The expensive part isn’t the tub. It’s the concrete saw.

This article is not going to show you eight layout types and let you pick your favorite. That approach — which is how nearly every competitor in this space structures their content — treats your floor plan like a menu item rather than a spatial problem to solve. What I’m going to do instead is walk you through how connected sleeping and bathing spaces actually work as systems, give you real numbers to reason from, and help you make decisions in the right order. The order is everything.

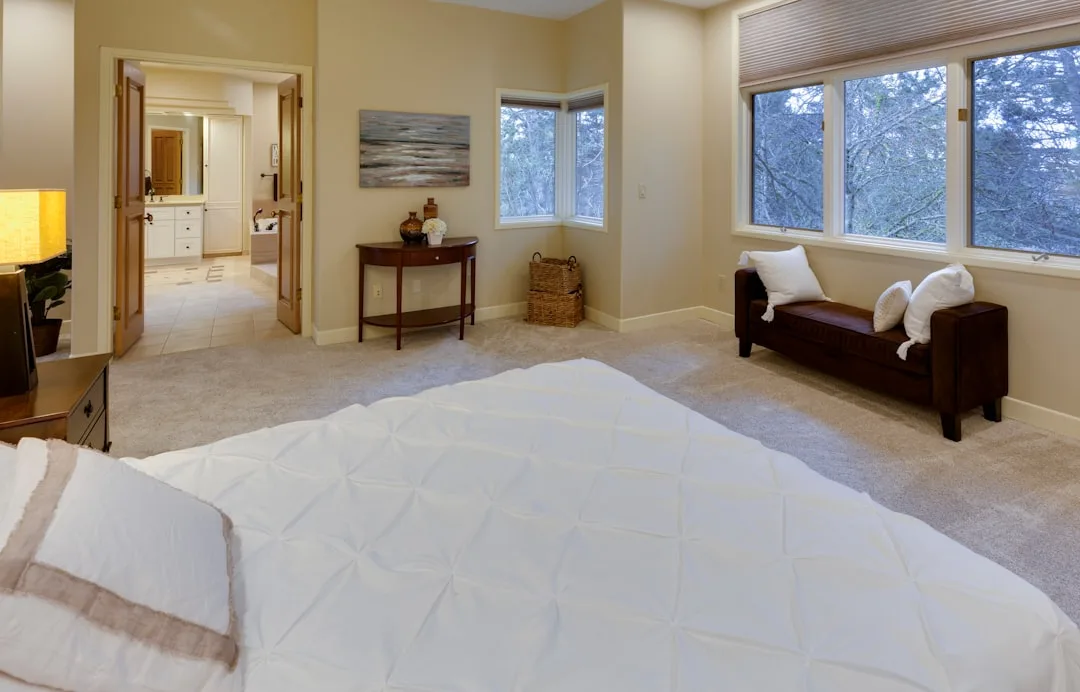

Why Most Master Bedroom and Bathroom Layout Plans Fail Before Demolition Starts

The floor plan that looks beautiful in a rendering and the floor plan that works at 6 a.m. when two people are simultaneously getting ready for work are not automatically the same thing. This is the central illusion of bathroom design content: it’s almost entirely visual, and your life in the space is almost entirely logistical.

I spent three months once working with a couple in Lincoln Park on a primary suite renovation. They had a Pinterest board. It was genuinely lovely. What they did not have was any clarity on where the shower would land relative to where one of them dried her hair, which was on the same side of the vanity where he needed to stand to shave. The square footage was fine — the room was 120 square feet, which is workable. The problem was that nobody had mapped how two bodies move through a space in a time-pressured morning routine. That’s a circulation problem, not a square footage problem.

Circulation paths and zone sequencing determine livability in ways that raw dimensions never capture. A 200-square-foot bathroom with a bad circulation plan will feel claustrophobic. A 90-square-foot bathroom with clear zones and well-placed access points will feel effortless.

The most expensive single planning mistake I’ve seen — more than once — is selecting a freestanding tub before confirming the drain rough-in location. Freestanding tubs require a floor drain, and if your existing rough-in is against the wall, you’re looking at jackhammering concrete to relocate it. That’s $1,500 to $4,000 in labor before a single tile is placed. Choosing the tub last, after the plumbing logic is established, would have cost nothing extra.

The most overlooked detail in connected suite planning — and this one surprises people every time I mention it — is door swing direction between the sleeping zone and the bathing zone. A door that swings into the bathroom can block the vanity. A door that swings into the bedroom can block a nightstand or disrupt a traffic path. Neither is inherently wrong, but both need to be decided before the framing goes up, not after.

The National Kitchen and Bath Association has tracked post-project renovation regrets, and inadequate planning is cited in over 60% of bathroom renovation regrets reported by homeowners. That number should be alarming. It means the majority of people who are unhappy with their renovation were unhappy before the work started — they just didn’t know it yet.

The most common planning mistakes I’ve seen across master bedroom and bathroom layout projects, ranked by how much they cost to fix after the fact:

• Selecting a freestanding tub before confirming drain rough-in location ($1,500–$4,000 to correct)
• Finalizing wall framing before deciding door swing direction (requires reframing, often $800–$2,000)
• Placing the vanity without accounting for task lighting angle (a shadow problem that’s cheap to prevent, expensive to rewire)
• Ignoring toilet clearance requirements until everything else is placed (forces toilet into whatever space remains, which is rarely the right space)
• Choosing tile size before confirming room dimensions and layout direction (cut tile at every edge instead of centered field = amateur result, labor rework)

Actionable takeaway: Before you look at a single fixture, draw your bedroom and bathroom footprints to scale — even on graph paper — and walk yourself through your actual morning routine, step by step, on paper. If you can’t trace the path, the contractor can’t fix it.

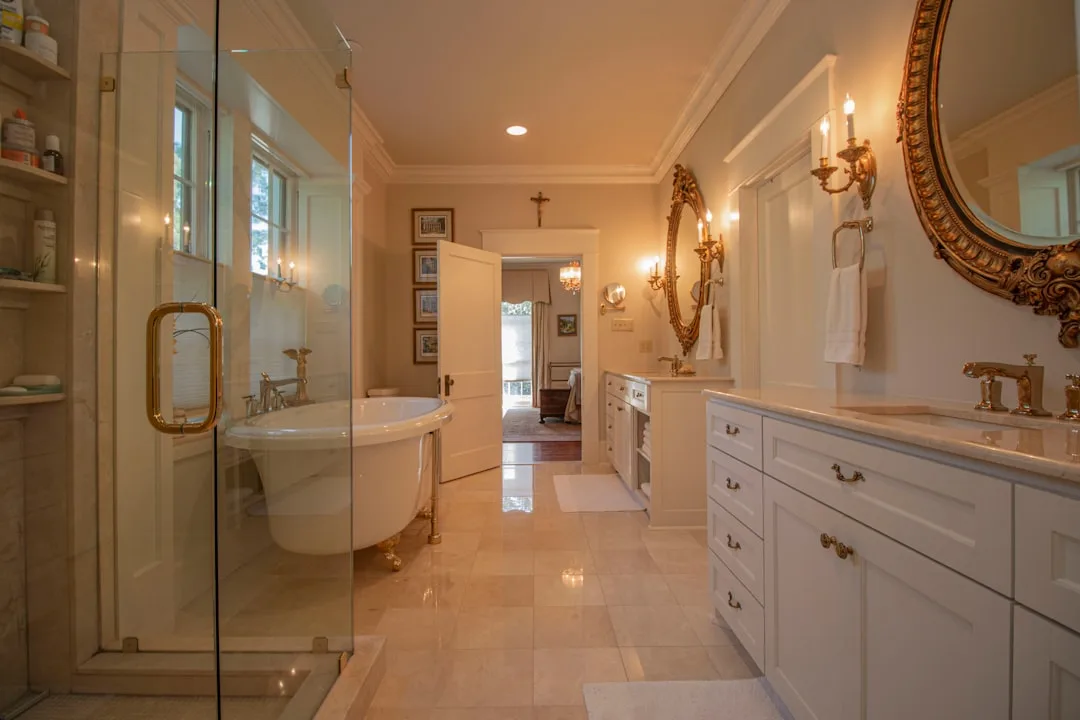

The Four Functional Zones Every Connected Sleeping-Bathing Space Needs

Most layout guides organize private suites by named configurations — the L-shape, the spa layout, the straight-and-narrow. I find this approach almost useless in practice because it tells you what something looks like rather than how to think about what you need. The framework I actually use with clients is zone-based, and it works regardless of room shape.

Zone 1 — The Threshold

This is the transition space between sleeping and bathing — the moment you cross from one function to another. Most plans ignore it entirely, and that’s why you get light bleed from the bathroom waking up whoever’s still sleeping, sound transfer from the exhaust fan or shower, and a complete absence of visual privacy when the bathroom door is open. The threshold doesn’t have to be a hallway. It can be a short angled entry, an offset doorway, or a walk-through closet. But it has to exist as an intentional buffer.

Zone 2 — The Grooming Core

This is your vanity, mirror, task lighting, and storage — and these four elements need to function as a single ergonomic system, not a collection of separate purchases. I’ve seen too many bathrooms where the mirror is centered on the wall but not on the sink, where the overhead light creates shadows directly on the face, or where the drawer hardware blocks the adjacent drawer from opening fully. The grooming core should be designed together, not assembled piece by piece.

Zone 3 — The Wet Area

Shower and tub placement is primarily a plumbing conversation before it’s an aesthetic one. The wet area should be positioned against a plumbing wall whenever possible — relocating supply and drain lines costs money and time that almost never shows up in initial estimates. Ventilation path matters here too: the exhaust fan should be as close to the shower or tub as structurally feasible, which we’ll cover in depth later.

Zone 4 — The Private Compartment

Toilet placement gets less thought than almost any other decision in suite planning, and the spatial consequences are significant. The NKBA recommends a minimum 30-inch clearance in front of all fixtures and 15 inches from the toilet centerline to any side obstruction — and if you don’t account for these dimensions in the floor plan before deciding where everything else goes, the toilet ends up wherever is left. Which is usually wrong. Half-walls around the toilet — rather than full enclosures — often preserve the spatial perception of the larger bathroom while still providing functional privacy.

What each zone requires at minimum to function correctly:

• Threshold: Enough depth to close the bathroom door without light or sound bleeding into the sleeping area — typically 18 to 24 inches of offset from the bedroom plane
• Grooming core: Vanity height of 32–36 inches (taller for users over 5’8″), side-mounted sconces at 60–65 inches from finished floor, minimum 36 inches of counter per person if two people share the space
• Wet area: Shower minimum 36 × 36 inches (NKBA standard), ideally 36 × 48 inches for a single user or 60 × 36 inches for two; wet area should share a wall with an existing plumbing stack whenever structurally possible
• Private compartment: Toilet centerline at least 15 inches from any wall or obstruction; 30 inches of clear floor space in front; door on the compartment — if used — should swing outward

Sketching these four zones doesn’t require software. Tape out your floor dimensions on the actual floor, or use quarter-inch graph paper. Assign a rough footprint to each zone and check whether the zones can coexist without overlapping in ways that compromise function.

Actionable takeaway: Before calling a contractor, assign each of the four zones a physical location in your floor plan, even approximately. If you can’t fit all four without compromise, that’s the conversation to have with your designer before any demo begins — not after.

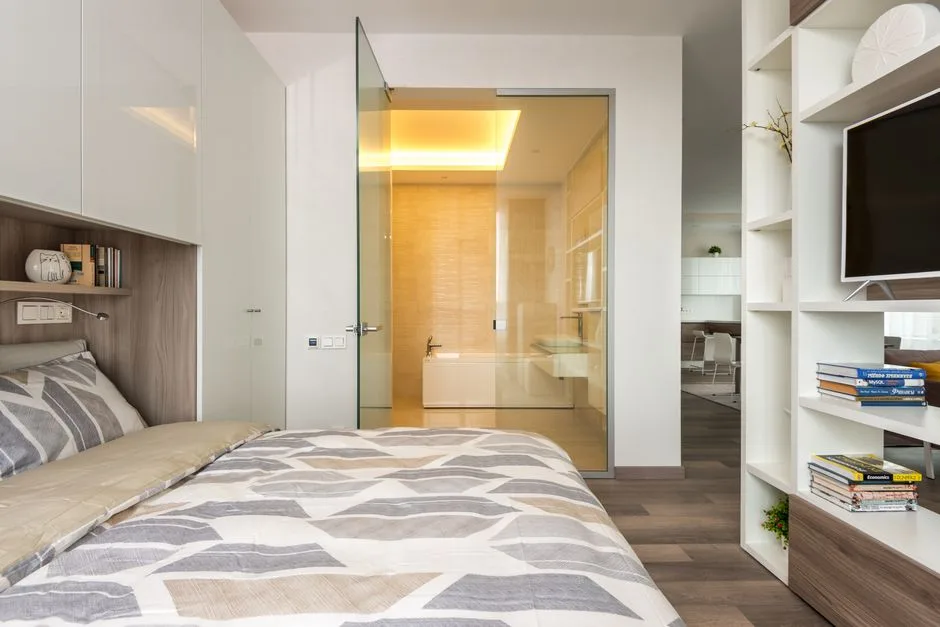

How the Bedroom Side of the Equation Affects Everything in the Bathroom

The master bedroom and bathroom layout problem is almost always framed as a bathroom problem. It isn’t. The bedroom side of the floor plan controls more than most people realize, and the decisions made there cascade directly into what’s possible on the bathroom side.

Bed placement relative to the bathroom entry is the first domino. If the primary path from bed to bathroom requires walking around a footboard, through a narrow gap between furniture, or past a partner who’s sleeping, that’s a daily friction cost that never shows up in a renovation quote. The standard fix — repositioning the bed — is often blocked by window placement, ceiling fan location, or closet door swing. Which means the right time to solve it is when the floor plan is still flat on a table.

Natural light strategy is the second. Sleeping spaces benefit from blackout-capable windows. Bathing spaces benefit from natural light — particularly north or east light for accurate color rendering at a vanity mirror. These two needs pull in opposite directions, and in a connected suite, they share a wall budget. If you don’t plan for both explicitly, you usually get neither optimized.

What the bedroom side of the plan needs to establish before bathroom design begins:

• Confirmed bed size and placement, with furniture clearances mapped (minimum 24 inches on egress side, 18 inches on secondary side)
• Closet location relative to the bathroom entry — walk-through closets as threshold buffers are one of the highest-value layout moves in primary suite planning
• Window placement and light direction noted on the plan
• Electrical panel location confirmed, because it affects which walls can practically receive new circuits for bathroom heating, lighting upgrades, or radiant floor systems
• HVAC duct or baseboard heater locations marked, because they constrain furniture placement more than most people expect

Actionable takeaway: Treat the bedroom floor plan as page one of your bathroom renovation, not a separate document. The two plans should be drawn together, at the same scale, on the same sheet.

The Numbers That Actually Matter in Suite Planning

Dimensions in design content tend to be presented as minimums — the smallest space in which something is technically possible. I find it more useful to think in terms of three thresholds: survivable, functional, and comfortable. The gap between survivable and comfortable is where most renovation regrets live.

Shower dimensions:

• Survivable: 32 × 32 inches (code minimum in most jurisdictions, genuinely unpleasant for anyone over 5’10”)
• Functional: 36 × 48 inches (enough to move without touching both walls simultaneously)
• Comfortable: 42 × 60 inches or larger (room to bend, turn, use a handheld showerhead without contortion)

Vanity counter space per person:

• Survivable: 18 inches of usable counter
• Functional: 30 inches
• Comfortable: 36–42 inches, with dedicated storage within 18 inches of each sink

Ceiling height in the wet area:

• Survivable: 7 feet (code minimum)
• Functional: 8 feet (allows standard shower door heights without custom cutting)
• Comfortable: 9 feet or higher with a linear drain and curbless entry — at this point the shower reads as a room, not a fixture

Clearance in front of the toilet:

• Code minimum: 21 inches (most jurisdictions)
• NKBA recommendation: 30 inches
• Comfortable: 36 inches, which is also the minimum that allows for aging-in-place grab bar installation without a full reframe

Walk-in closet depth, if used as threshold buffer:

• Survivable: 24 inches (rod-to-wall, barely usable)
• Functional: 48 inches (rod-to-rod configuration possible)
• Comfortable: 60–72 inches with an island or center storage unit — at this depth the closet becomes its own zone and the threshold function is fully achieved

FAQ

Q: What’s the minimum square footage for a functional master bedroom and bathroom layout?

For the bathroom alone, 60–80 square feet is the minimum at which all four zones can be addressed without serious compromise — roughly an 8×10 room. For the connected bedroom, 180–200 square feet allows a king bed with proper clearances plus a path to the bathroom that doesn’t require furniture rearrangement. Combined, a 260–280 square foot suite is where function becomes reliable. Below that, you’re making tradeoffs; the question is which ones you’re willing to accept.

Q: Should the closet be between the bedroom and bathroom, or separate?

Between, whenever the floor plan allows it. A walk-through closet used as the threshold between sleeping and bathing is one of the highest-value layout decisions in primary suite planning. It buffers light and sound from the bathroom, gives you a logical dressing zone that doesn’t eat bedroom floor space, and creates a spatial sequence that feels intentional rather than accidental. The only real drawback is the linear footage it requires — you need at least 6–8 feet of depth to make it functional as both a closet and a passageway.

Q: How do I know if my existing plumbing wall can support the layout I want?

The short answer: you don’t, without a plumber looking at it. The practical starting point is to identify where your existing wet wall is — the wall that contains supply and drain lines — and design outward from there. Any fixture you can position against that wall or within 5–6 feet of it is plausible without major rough-in work. Any fixture that needs to move more than 6 feet from existing lines, or cross to a different wall entirely, is a conversation that involves concrete cutting, rerouting, and a budget line most initial estimates don’t include.

Q: Is it worth adding a second vanity sink if the counter space isn’t really there for it?

No. A second sink that compresses each person’s usable counter to under 18 inches is worse than one sink with 36–42 inches of working surface. Two sinks become a selling point; two sinks with nowhere to put anything become a source of daily irritation. If the floor plan doesn’t genuinely support 30 inches of counter per person alongside each sink, a single well-sized vanity with a thoughtful storage plan is the better call every time.

Q: What’s the single change that has the biggest impact on a poorly functioning master bedroom and bathroom layout?

In my experience: fixing the threshold. Most connected suites that feel wrong have no intentional transition between sleeping and bathing — the bathroom door opens directly off the bedroom with no buffer at all. Adding even a minimal offset — an angled entry, a short vestibule created by shifting a non-load-bearing wall, or a reconfigured closet that creates a pass-through — solves the light bleed, the sound transfer, and the visual privacy issues simultaneously. It’s rarely the most expensive change, and it consistently has the largest effect on how the overall suite feels to live in.
